Waterless nebulizing diffuser · Model M202B aluminium alloy

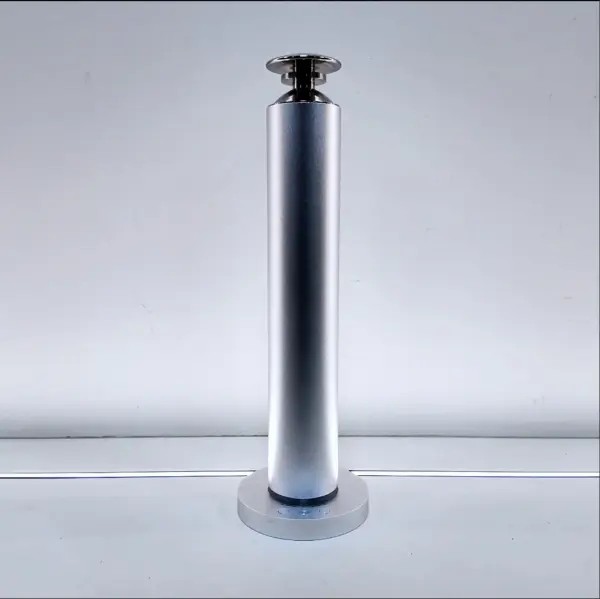

Commercial Aluminum Alloy Essential Oil Diffuser M202B
Commercial aluminium alloy waterless essential oil diffuser M202B covers 375 m³ / 13 243 ft³. 100 ml / 3.38 fl oz tank, 1 ml/h / 0.03 fl oz/h, remote control and Bluetooth, 8 000 mAh battery, PP + aluminium alloy, ≤36 dB, ≤3 W, DC 5V. CE / FCC / RoHS. Wholesale direct from our China factory.
Floor area by ceiling height
3.75 m / 12.3 ft100 m² 1 076 ft² 375 m³ ÷ ceiling height
Scent is dosed by volume, so the fixed figure is 375 m³. Floor area is that volume divided by your ceiling height - double the height and the area halves. Open-plan rooms, atriums and stairwells count as one connected volume. Spaces with heavy fresh-air exchange or doors held open need de-rating; air-change data is confirmed per project, never estimated.
Wholesale price
Silver or black (2 colourways, +$0). Prices in USD, ex-works China, per piece by order quantity.
Bulk tiers
Build
Standard buildColour · +$0
SilverOrder quantity
100 pcs · 10 cartonsAdd 400 pcs to reach 500 pcs (50 cartons) at $33.25 per unit, $0.56 less on every piece.
One standard build unless stated. No paid nozzle-head or display variant on this model.
See the user manual: M202B User manual
The M202B is a waterless nebulizing diffuser for offices, B&Bs, clothing stores, villas and fitness studios up to 375 m³ / 13 243 ft³. Cold nano-atomization gives a dry, smoke-free scent without water, heat or wet residue.
It measures 365 x 110 x 58 mm / 14.37 x 4.33 x 2.28 in, net 1.8 kg / 3.97 lb, gross 2.7 kg / 5.95 lb. The 100 ml / 3.38 fl oz tank runs 1 ml/h / 0.03 fl oz/h; a full fill gives 100-130 h of scenting. Control is remote control and Bluetooth; the 8 000 mAh battery runs on DC 5V; rated ≤36 dB, ≤3 W. PP + aluminium alloy in silver. CE / FCC / RoHS.
Cartons pack 10 sets at 65 x 42 x 47 cm / 25.59 x 16.54 x 18.50 in, 27 kg / 59.52 lb. Ships with a sealing ring, replaceable atomizing core and remote control. Wholesale direct from our China factory.
In every carton
Sealing ring, replaceable atomizing core, remote control
Full specification
| Model | Commercial Aluminum Alloy Essential Oil Diffuser M202B |
|---|---|
| Product size | 365 x 110 x 58 mm / 14.37 x 4.33 x 2.28 in |
| Coverage | 375 m³ / 13 243 ft³ |
| Oil bottle | 100 ml / 3.38 fl oz |
| Oil use | 1 ml/h / 0.03 fl oz/h |
| Net weight | 1.8 kg / 3.97 lb |
| Gross weight | 2.7 kg / 5.95 lb |
| Carton | 10 sets / 65 x 42 x 47 cm (25.59 x 16.54 x 18.50 in), 27 kg / 59.52 lb |
| Materials | PP + aluminium alloy |
| Colours | Silver (1 colourway, +$0) |
| Noise | ≤36 dB |
|---|---|
| Power | ≤3 W |
| Voltage | DC 5V |
| Control | Remote control / Bluetooth |
| Pump | Air pump venturi atomization |
| Timer default | Customizable spray intervals |
| Accessories | Sealing ring, replaceable atomizing core, remote control |
One option to choose: the build
| Build | SKU | Surcharge | Unit price at 100 pcs |
|---|---|---|---|
| Standard build | +$0 | $33.81 |
Volume tiers
| Order quantity | Cartons of 10 | Standard build |
|---|---|---|
| 1 - 99 pcs | 1 pc, no carton | $41.91 |
| 100 - 499 pcs | 10 - 49 cartons | $33.81 |
| 500 - 999 pcs | 50 - 99 cartons | $33.25 |
| 1 000 - 2 999 pcs | 100 - 299 cartons | $32.69 |
| 3 000+ pcs | 300+ cartons | $32.13 |
User manual
Request the manual PDF with the RFQ; it is returned with pricing and certification.
Certification
CE, FCC and RoHS apply to this platform. Certificate copies and the per-market document list are issued with your quotation.
No engraving charge
Logo laser engraving on your sample unit
Order one sample unit and we laser-engrave your logo at no extra charge. The engraving service is free; the sample unit itself is charged. Volume logo, printed sleeves and custom retail boxes are quoted separately.
Buyer questions
What space can the M202B cover?
375 m³ / 13 243 ft³.
What control does it have?
Remote control and Bluetooth.
What colours are available?
Silver, one colourway, +$0.
What is the oil consumption?
1 ml/h / 0.03 fl oz/h.
What accessories are included?
Sealing ring, replaceable atomizing core and remote control.
How many per carton?
10 sets, 65 x 42 x 47 cm / 25.59 x 16.54 x 18.50 in, 27 kg / 59.52 lb.
Can you engrave my logo?
Yes, on one sample unit the engraving service is free; the sample unit itself is charged.
Request for quotation
Get your Commercial Aluminum Alloy Essential Oil Diffuser M202B wholesale price
Tell us colour split, quantity and destination market and we will return unit price, carton spec, lead time, accessories and certificates.
