Waterless ultrasonic piezoelectric diffuser · Model UD500
UHF Essential Oil Diffuser UD500
Floor area by ceiling height
3.75 m / 12.3 ft133 m² 1 435 ft² 500 m³ ÷ ceiling height
Scent is dosed by volume, so the fixed figure is 500 m³. Floor area is that volume divided by your ceiling height - double the height and the area halves. Open-plan rooms, atriums and stairwells count as one connected volume. Spaces with heavy fresh-air exchange or doors held open need de-rating; air-change data is confirmed per project, never estimated.
Wholesale price
White or grey (2 colourways, +$0). Prices in USD, ex-works China, per piece by order quantity.
Bulk tiers
Build
Standard buildColour · +$0
WhiteOrder quantity
100 pcs · 4 cartonsAdd 900 pcs to reach 1 000 pcs (40 cartons) at $20.42 per unit, $0.33 less on every piece.
One standard build unless stated. No paid nozzle-head or display variant on this model.
See User Manual: UD500 User Manual
In every carton
20 ml oil bottle, 3 cotton sticks, Type-C charging cable
Full specification
| Model | UHF Essential Oil Diffuser UD500 |
|---|---|
| Product size | ø75 x 125 mm / ø2.95 x 4.92 in |
| Coverage | 500 m³ / 17 657 ft³ |
| Oil bottle | 15 ml / 0.51 fl oz |
| Oil use | 0.28 / 0.5 / 1 ml/h |
| Net weight | 0.34 kg / 0.75 lb |
| Gross weight | 0.65 kg / 1.43 lb |
| Carton | 25 sets / 52.8 x 30 x 53 cm (20.79 x 11.81 x 20.87 in), 18.1 kg / 39.90 lb |
| Materials | PA6 + ABS + stainless steel |
| Colours | White or grey (2 colourways, +$0) |
| Noise | <15 dB |
|---|---|
| Power | 8 W |
| Voltage | 5V |
| Control | Button |
| Pump | 3MHz piezoelectric ceramic atomization |

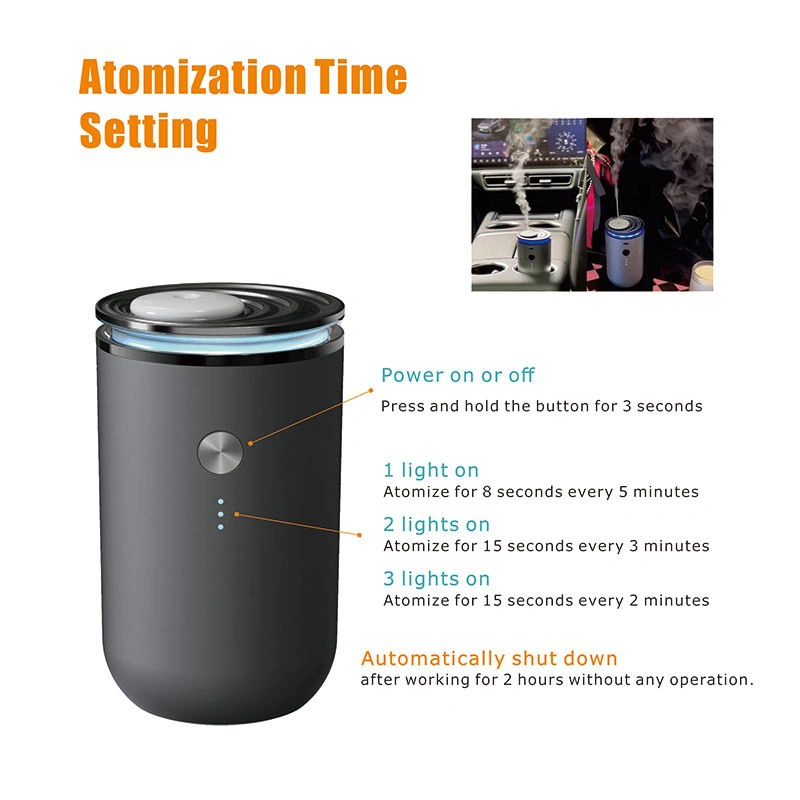

| Timer default | Three run levels: spray 8 s / pause 5 min; spray 15 s / pause 3 min; spray 15 s / pause 2 min |
| Accessories | 20 ml oil bottle, 3 cotton sticks, Type-C charging cable |
One option to choose: the build
| Build | SKU | Surcharge | Unit price at 100 pcs |
|---|---|---|---|
| Standard build | +$0 | $20.75 |
Volume tiers
| Order quantity | Cartons of 25 | Standard build |
|---|---|---|
| 1 - 99 pcs | 1 pc, no carton | $24.00 |
| 100 - 999 pcs | 4 - 39 cartons | $20.75 |
| 1 000+ pcs | 40+ cartons | $20.42 |
User manual
Request the manual PDF with the RFQ.
Certification
CE, FCC and RoHS apply to this platform. Certificate copies and the per-market document list are issued with your quotation.
No engraving charge
Logo laser engraving on your sample unit
Order one sample unit and we laser-engrave your logo at no extra charge. The engraving service is free; the sample unit itself is charged. Volume logo, printed sleeves and custom retail boxes are quoted separately.
Buyer questions
What space does it cover?
500 m³ / 17 657 ft³ .
Is it waterless?
Yes, it is a waterless piezoelectric diffuser; oil is atomized dry with no water or heat.
What is the battery runtime?
5h / 8h / 18h per charge .
What accessories are included?
20 ml oil bottle, 3 cotton sticks, Type-C charging cable.
What colours are available?
White or grey (2 colourways, +$0).
Can you engrave my logo?
Yes, on one sample unit the engraving service is free; the sample unit itself is charged.
Request for quotation
Get your UHF Essential Oil Diffuser UD500 wholesale price
Tell us colour split, quantity and destination market and we will return unit price, carton spec, lead time and certificates.
