Waterless nebulizing diffuser · Model A100 PP white
Wall-Mounted Scent Diffuser A100
Floor area by ceiling height
3.75 m / 12.3 ft80 m² 861 ft² 300 m³ ÷ ceiling height
Scent is dosed by volume, so the fixed figure is 300 m³. Floor area is that volume divided by your ceiling height - double the height and the area halves. Open-plan rooms, atriums and stairwells count as one connected volume. Spaces with heavy fresh-air exchange or doors held open need de-rating; air-change data is confirmed per project, never estimated.
Wholesale price
White, +$0 · Bluetooth 5.0 included. Prices in USD, ex-works China, per piece by order quantity.
Bulk tiers
Build
Standard wall-mountedColour · +$0
WhiteOrder quantity
120 pcs · 4 cartonsAdd 900 pcs to reach 1 020 pcs (34 cartons) at $13.99 per unit, $1.08 less on every piece.
A100 is one standard wall-mounted build. There is no nozzle-head or digital-display variant on this model; any custom option must be confirmed on the RFQ.
In every carton
Sealing gasket, replaceable atomizing core
Full specification
| Model | Wall-Mounted Scent Diffuser A100 |
|---|---|
| Product size | 62 x 90 x 238 mm / 2.44 x 3.54 x 9.37 in |
| Coverage | 300-500 m³ / 10 594-17 657 ft³ |

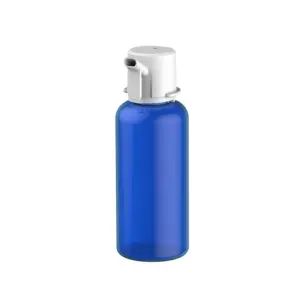

| Oil bottle | 160 ml / 5.41 fl oz |
| Oil use | 1 ml/h / 0.03 fl oz/h |
| Net weight | 0.40 kg / 0.88 lb |
| Gross weight | 0.45 kg / 0.99 lb |
| Carton | 30 sets / 55 x 40 x 47 cm (21.65 x 15.75 x 18.50 in), 14 kg / 30.86 lb |
| Materials | PP white shell |
| Colours | White only (1 colourway, +$0) |
| Noise | ≤38 dB |
|---|---|
| Power | ≤5 W |
| Voltage | DC 12V |
| Control | Bluetooth 5.0 |
| Pump | 095 |
| Timer default | Custom runtime via button / Bluetooth app |
| Accessories | Sealing gasket, replaceable atomizing core |
One option to choose: the build
| Build | SKU | Surcharge | Unit price at 120 pcs |
|---|---|---|---|
| Standard wall-mounted | WD-A100-STD | +$0 | $15.07 |
Volume tiers
| Order quantity | Cartons of 30 | Standard wall-mounted |
|---|---|---|
| 1 - 1 pc | 1 pc, no carton | $18.00 |
| 2 - 99 pcs | 2 pcs, no carton | $15.68 |
| 100 - 999 pcs | 3 - 33 cartons | $15.07 |
| 1 000 - 4 999 pcs | 33 - 166 cartons | $13.99 |
| 5 000+ pcs | 166+ cartons | $13.63 |

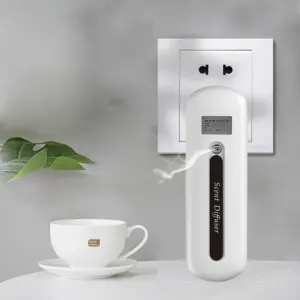

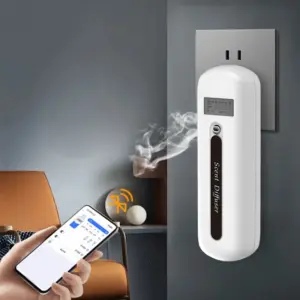

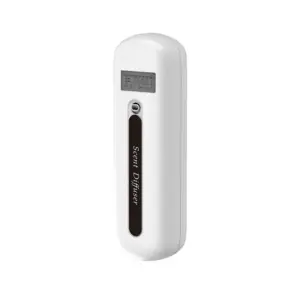

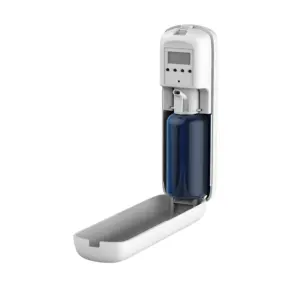

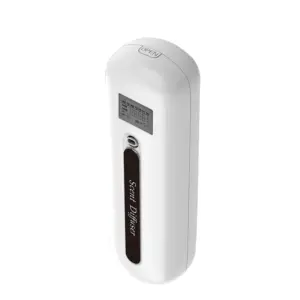

Detail gallery
User manual
Request the PDF manual with your RFQ and we will return it together with pricing and certification details.
Certification
CE, FCC and RoHS apply to the A100 platform. Certificate copies and the per-market document list are issued with your quotation.
No engraving charge
Logo laser engraving on your sample unit
Order one sample unit at the sample price and we laser-engrave your logo at no extra charge so you can approve placement and contrast on the actual white PP shell before the production run. The engraving service is free; the sample unit itself is charged. Volume logo work, printed sleeves and custom retail boxes are quoted separately.
Buyer questions
What is the real coverage of the A100?
It is factory-rated at 300-500 m³ / 10 594-17 657 ft³. Effective range shifts with ceiling height and air flow.
How long does one fill last?
About 35.5 days at 8 hours/day from the 160 ml / 5.41 fl oz bottle, at 1 ml/h / 0.03 fl oz/h consumption. Viscosity changes this by roughly ±1x.
Is it wall-mounted only?
The A100 is built as a wall-mount (wall-plug) unit. Ask if you need a different mounting arrangement.
Does it use water or heat?
No. It is waterless cold nano-atomization, so the oil never contacts water or a heating element.
What control does it have?
Bluetooth 5.0 on the standard build. WiFi, a separate remote and a display are not part of this model.
What are the power and voltage?
≤5 W, DC 12V. Rated noise is ≤38 dB.
Which colour is available?
White only, +$0. Other colours are a custom RFQ item.
What is included in the box?
A sealing gasket and a replaceable atomizing core are included.
Does the price include Bluetooth?
Yes, Bluetooth 5.0 is part of the standard A100 build at the listed page price.
How many units fit one carton?
30 sets per carton, 55 x 40 x 47 cm / 21.65 x 15.75 x 18.50 in, 14 kg / 30.86 lb.
What is the unit price at volume?
Published by quantity: $18.00 for one sample, $15.68 at 2-99, $15.07 at 100, $13.99 at 1 000 and $13.63 at 5 000+, USD ex-works China.
Can you engrave my logo?
Yes. On one sample unit, the laser engraving service is free; the sample unit itself is charged. Volume logo work is quoted separately.
What certifications does it have?
CE, FCC and RoHS apply. Certificate copies are provided with the quotation.
Is the user manual online?
Request the PDF manual with your RFQ.
What is the lead time?
Lead time depends on quantity and season and is confirmed on the quotation; it is not a fixed published figure.
Request for quotation
Get your A100 wall-mounted wholesale price
Tell us quantity and destination market and we will return unit price, carton spec, lead time, accessories list and certificate copies. Manufacturing and engraving run from our own China factory.
